Types Of Pattern Used For Casting

Types Of Patterns :- A pattern is an element used for making cavities in the mould, into which molten metal is poured to produce a casting. The type of pattern to be used for a particular casting depends upon many factors like design of casting, complexity of shape, number of casting required [bulk of casting], mould process, surface finish and accuracy.

The requirements of a good pattern are:

  • Secure the desired shape and size of the casting.
  • Cheap and readily repairable.
  • Simple in design for ease of manufacture.
  • Light in mass and convenient to handle.
  • Have high strength and long life in order to make as many moulds as required.
  • Retain its dimensions and rigidity during the definite service life.
  • Its surface should be smooth and wear resistant.
  • Able to withstand rough handling.

The following patterns are commonly used.

  1. Solid or single piece pattern
  2.  split or two piece patterns
  3. Gated pattern
  4. Match plate pattern
  5.  skeleton pattern
  6. sweep pattern
  7. loose piece pattern
  8. cope and drag pattern
  9. follow board pattern
  10. segmental pattern

Solid or single piece pattern

It is the simplest of all patterns is made in one piece and carries no joints, partition or loose pieces. The pattern is cheap and it is best suited for limited production only. Since its moulding involves a large number of manual operations like gate cutting, providing runner and risers. so, such patterns are used for producing a few large castings for example, stuffing box of steam engine.

types of patterns

split or two piece patterns

These patterns are used for intricate casting of usual shapes. They are made in two parts and these two parts of the pattern are joined together with the help of dowel pins. While molding one of the patterns is contained by the drag and other by the cope. For a more complex  casting, the pattern may be split in more than two parts.

types of patterns

Gated pattern

They are used in mass production for such castings multi – cavity moulds are prepared i.e., a single sand mould carries a number of cavities patterns and these castings are connected to each other by means of gate formers. Which provides suitable channels or gates in sand for feeding all the cavities. Gated patterns reduce the moulding time somewhat. Because of their higher cost, these patterns are used for producing small castings in mass production systems and on moulding machines.

types of patterns

Match plate pattern

These are used for mass production these patterns find a great favor  in machine moulding. A match plate pattern is a split pattern having the cope and drags portions mounted on opposite sides of a plate (usually metallic), called the “match plate” that conforms to the contour of the parting surface. The gates and runners are also mounted on the match plate, so that very little hand work is required. This results in higher productivity.
types of patterns

skeleton pattern

For large castings having simple geometrical shapes, skeleton patterns are used. Just like sweep patterns, these are simple wooden frames that outline the  shape of the part to be cast and are also used as guides by the molder in the hand shaping of the mould. This type of pattern is also used in pit or floor molding process.

types of patterns

sweep pattern

Sweeps can be advantageously used for preparing moulds  of  large symmetrical castings. This effects a large saving in time, labour  and material. A sweep is a section or board (wooden) of proper contour that is rotated about one edge to shape mould cavities having shapes of rotational symmetry.This type of pattern is used when a casting of large size is to be produced in a short time.
types of patterns

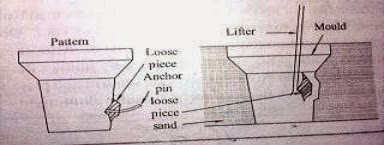

loose piece pattern

Some patterns usually single piece are made to have loose pieces in order to enable their easy with drawl from the mould. These pieces form and integral part of the pattern during moulding.  After the mould is complete, the pattern is withdrawn leaving the pieces in the sand, which are later with drawn separately through the cavity formed by the pattern.

types of patterns

Cope and drag pattern

When very large casting are to be made, the complete pattern becomes too heavy to be handled by a single operator. such pattern is made in two parts which are separately moulded in  different moulding boxes. After completion of the moulds,  the two boxes are assembled to from the complete cavity. It is similar to two-piece pattern.
types of patterns

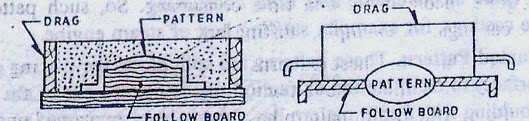

Follow board pattern

A follow board is a wooden board used for support a pattern during moulding. It  acts as a seat for the pattern. In the former case, the follow board is provided with a cavity corresponding to the shape of the pattern in which the pattern is seated for moulding.

types of patterns

segmental pattern

The segmental pattern is functionally similar to sweep pattern in the sense, that both employ a part of the pattern instead of a compelte pattern, for getting the required shape of the mould. The segmental pattern is in the form of a segment, and is used for moulding parts   having circular shapes. To create the mould, it is rotated about the post in the same way as in sweep pattern. But it is not revolved continuously about the post to prepare the mould. Rather, it prepares the mould by parts.
